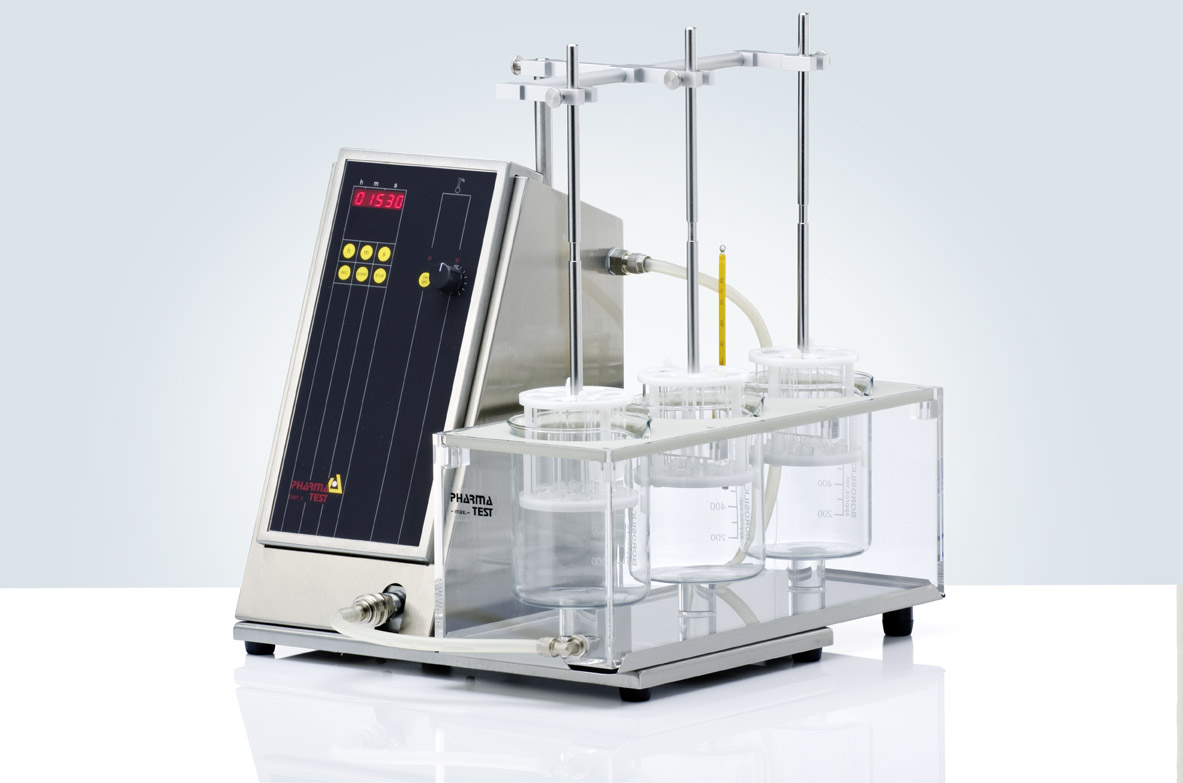

DIST-3 Triple Basket Tablet Disintegration Tester
The DIST-3 is a three-basket manual tablet disintegration testing instrument, manufactured according to the recent USP [701/2040], EP [2.9.1/2.9.1.2], JP and other pharmacopoeias. The DIST-3 is used for the manual testing of disintegration times of tablets, capsules and other solid dosage forms.
DIST-3 Triple Basket Tablet Disintegration Tester
Operating Mode
The triple basket DIST-3 version offers the following features: The illuminated digital LED display shows the elapsed testing time and the firmware version. A silent 24V DC motor drive smoothly moves the disintegration basket up and down over a distance of 55 mm (each way), 30 times per minute. Every two seconds the stroke rate is automatically re-adjusted; the stroke height is pre-set by the eccentric drive mechanism. The disintegration baskets which hold the glass tubes and discs, are placed into a stainless steel holder. After start they are smoothly moved into the testing medium. Depending on the operating procedure, the test is either automatically stopped if the pre-set time has expired or if the operator aborts the test after he saw all samples to be disintegrated. The baskets always stop at their highest mechanical position.
Standard Disintegration Basket

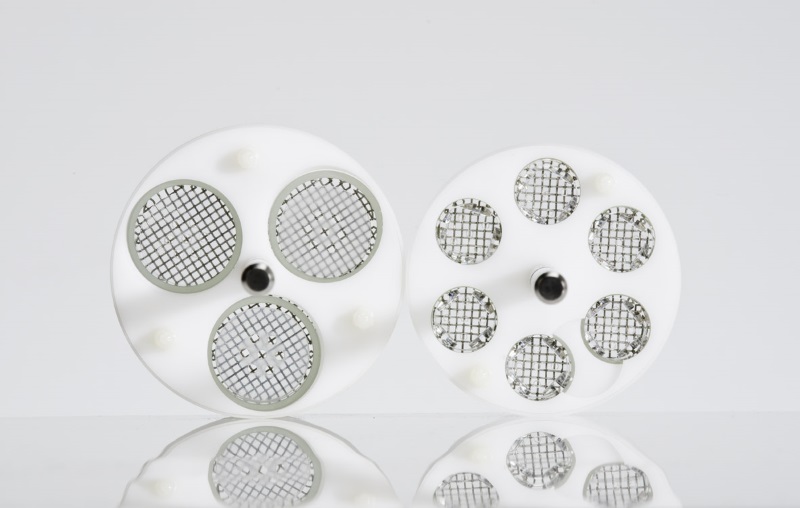

The standard disintegration baskets are supplied with 6 glass tubes and 6 plastic discs. Optionally, the 3 tube basket for larger samples according to apparatus "B" of the EP [2.9.1.2] and USP [2040], can be used without any further modifications.
A built-in thermostatically controlled heating system warms the water within the Plexiglas (Perspex) bath up to 37˚C. A powerful pump is used to circulate the water within the bath. The pre-selected temperature is automatically adjusted by a built-in control sensor. A second sensor is used as a safety device which switches off the heater should the temperature rise outside the limit. A thermo fuse and a thermo switch, fixed to the heater, provide additional safety features to protect the system from overheating. The bath temperature can be stepplessly adjusted. Using an external control thermometer the temperature of the test medium can be checked at any time.
| Parameter | Specifications |
|---|---|
| Display | LED, illuminated |
| Data Entry | Functional keys |
| Testing Positions | 3 baskets for 6 samples each (alternative baskets for 3 larger samples available) |
| Timer | 1 sec. up to 9 hrs. 59 min. 59 sec. |
| Stroke Height | Fixed at 55mm |
| Stroke Frequency | 30 strokes / minute |
| Temperature Adjustment | By potentiometer within approx. 30˚ to 45˚C |
| Instrument Housing | Stainless steel, powder coated surface for better material protection |
| Calibration | Built-in calibration procedures for speed, temperature control, OQ/PQ interval programmable including alarm |
| Instrument Dimensions | Approx. 42 x 35 x 42cm (width x depth x height) |
| Packaging Dimensions | Approx. 60 x 48 x 62cm (width x depth x height) |
| Net / Gross Weight | 18 / 24kg |
| Certification | All components certified to USP/EP requirements |
| CE/EMC Certification | All CE/EMC certification provided |
| Validation | All IQ & OQ documents included |
We reserve the right to make technical changes without any prior notice.
