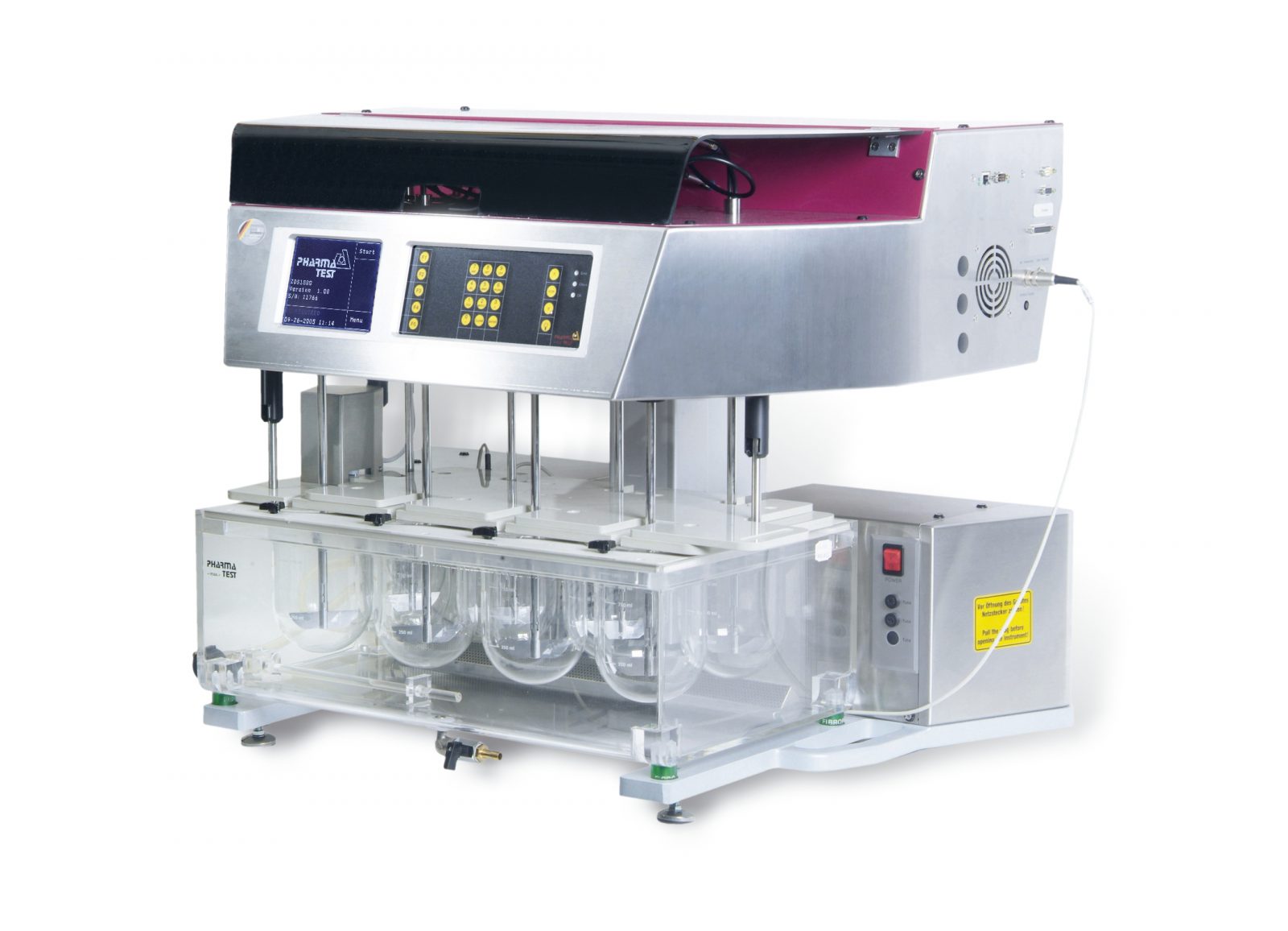

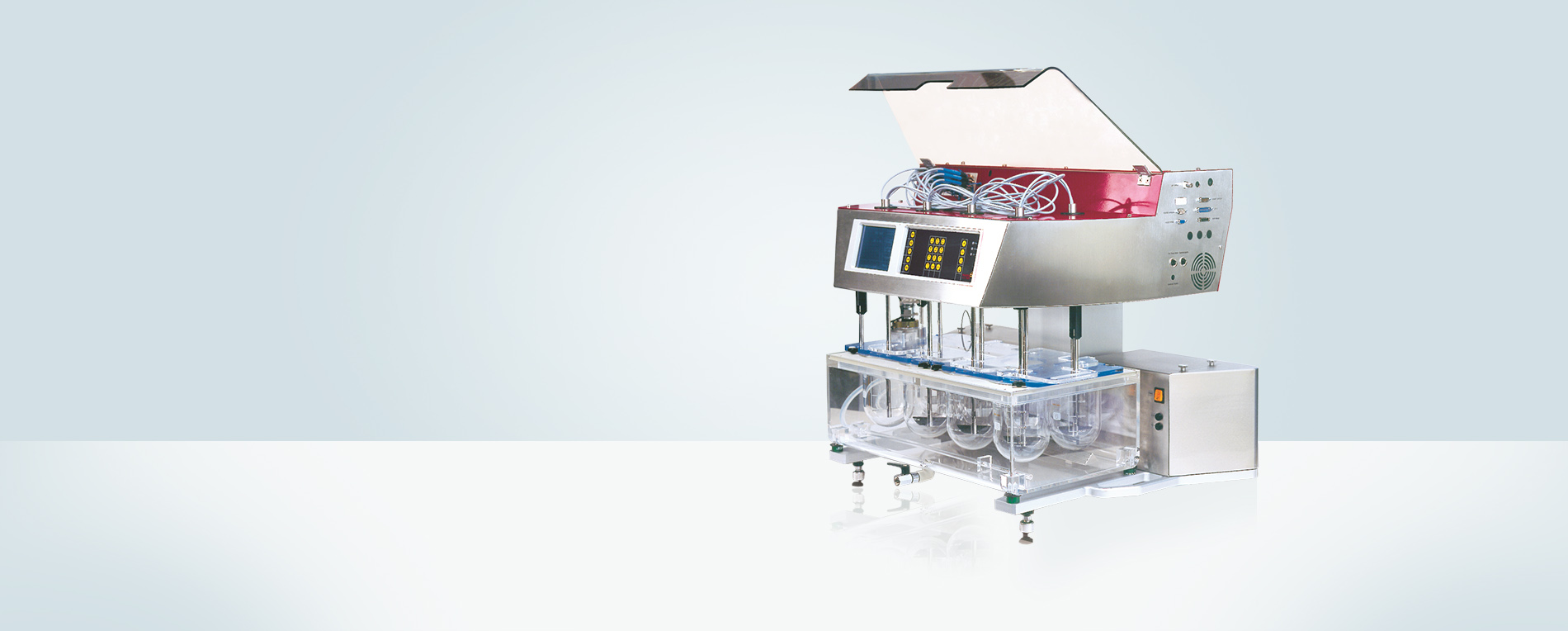

IDS 1000 In Situ Dissolution Testing System

In-Situ Dissolution
IDS or In situ Dissolution System is about the application of direct measurement technology to Dissolution Testing. Traditionally, dissolution testing has been carried out on solid dosage forms using a standard dissolution tester. Samples of the dissolving active within the dosage form are taken for estimation from the dissolution tester either manually, or using more automated means such as a pump which has been connected to a suitable measurement device, usually a UV Spectrophotometer.

Using IDS 1000, not only can the whole process of sample measurement be automated, but can also be self contained, such that there is no need for samples to be pumped out of the dissolution vessels to external measurement facilities such as a spectrometer, because all that is needed for the measurements to be made is contained within the confines of the instrument itself.

The fiber-optic DAD spectrometer with multiplexer is integrated in the instrument head.

Operating Principle
In the first instance the introduction of tablets or other dosage forms is as with a conventional dissolution instrument using a synchronous tablet drop magazine. The instrument is started according to the WinDiss32 Dissolution Software control, but the sampling sequences have been replaced by direct measurement technology within the dissolution vessel itself, with each measurement cycle accomplished in seconds rather than minutes.

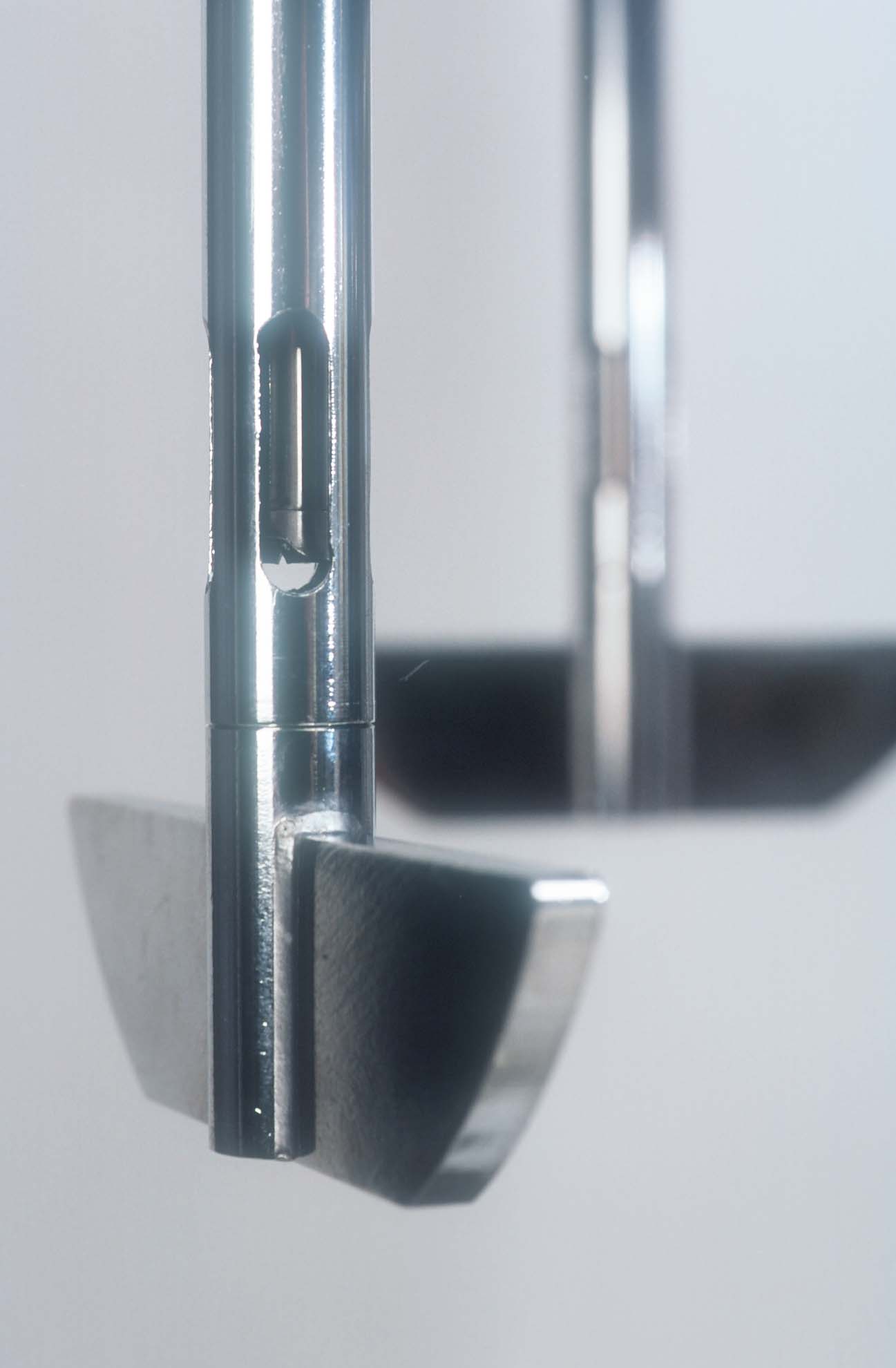

The in-situ measurement is performed by fiber optic probes which are located in the centre of the stirring shafts of the dissolution tools, i.e. paddle or basket (USP App. 2 or 1). The fiber optic probe can be removed from the shaft so that various path length inserts can be employed for different active concentrations and extinction coefficient ranges.

This coupled with no externally pumped liquids not only allows us to have very fast sampling sequences (useful for fast disintegrating and fast dissolving actives) but also means that the system does not contain unnecessary hardware, whilst still offering the advantage of a self-validation routine (SST or System Suitability Test) for all the on-board measurement hardware. This validation routine is activated before the start of each analysis.

The combination of self-validation, speed, precision and no external fluid circulation are very attractive options. The built in Diode Array Spectrophotometer also means that single wavelength measurements are no longer made, but whole spectra may be accumulated to optimize the analytical wavelength used. This also allows the use of first derivative techniques in order to analysis multi-component formulations with overlapping absorption curves.

Supportive Design

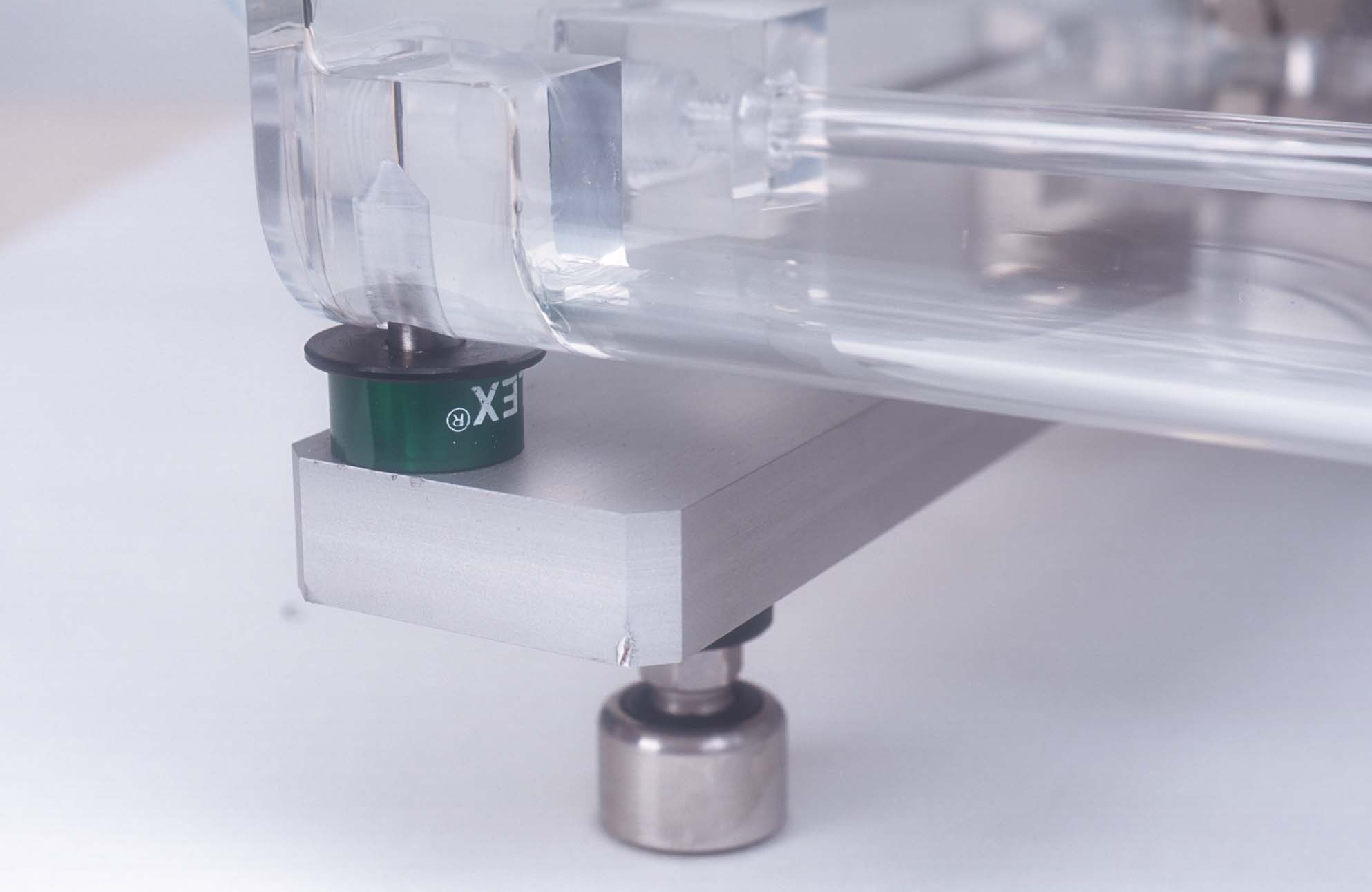

Today the instrument operator of such instruments expects not only conformity with the pharmacopoeia requirements, but also easy operation and accessibility to the test vessels. This means a dissolution bath should offer both good manual access as well as automation facilities. The IDS 1000 offers both. All test vessels are placed in a 4 + 4 line-up so that it is easy to remove spent samples and refill with medium. The clear-view Plexiglas water bath sits on vibration absorbing feet as does the built-in circulation pump. There are external temperature probes to better control both bath and medium temperature.

The depth setting of the stirrers is programmable. In fact 8 tool depth positions can be selected to meet all settings required for different test tools such as Paddles, Baskets, Transdermal Cylinders and so on. The PHARMA TEST IDS 1000 In-Situ Tablet Dissolution Tester exceeds all technical requirements which are currently described in the USP [711/724], FDA, EP [2.9.3/4] and German Pharmacopoeias.

Test Procedure

• No need to remove any samples
• No worries about USP 1% limit for volume inaccuracies
• All USP rules regarding sampling position followed
• Comes with USP/EP App. 2 stainless steel paddles
• Literature to support similar results to conventional testers
• Easy access to all user serviceable parts
• All IQ and OQ paperwork of the instrument is included in the standard supply scope

Operating Principle of the DAD Spectrophotometer

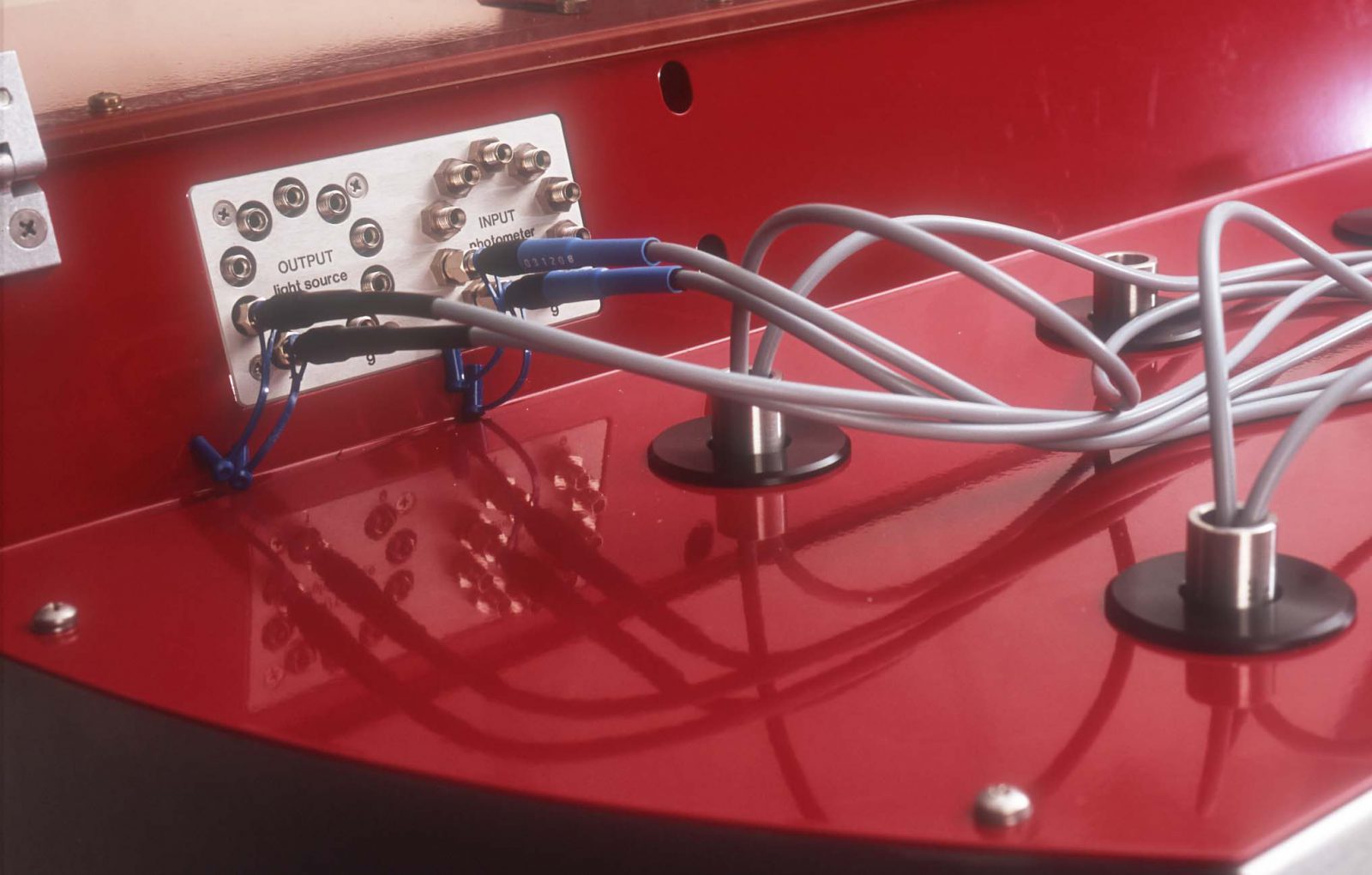

A complete new design of detector and optics is implemented inside the IDS 1000 F/O Dissolution Test System. The result is a spectrophotometer which is optimized for the use of fiber technology offering state of the art performance. Combined with a 9-channel multiplexer it is possible to acquire 8 channels with fiber probes directly inserted to the hollow shafts of the vessels. The ninth channel allows reference measurement for each measurement cycle and boosts the instrument performance to a real double beam spectrophotometer. With respect to maintenance and service all components are easily accessible. It guarantees highest demands on robustness and reliability. The inbuilt solution inside the IDS 1000 reduces footprint and offers highest comfort for complete system validation.

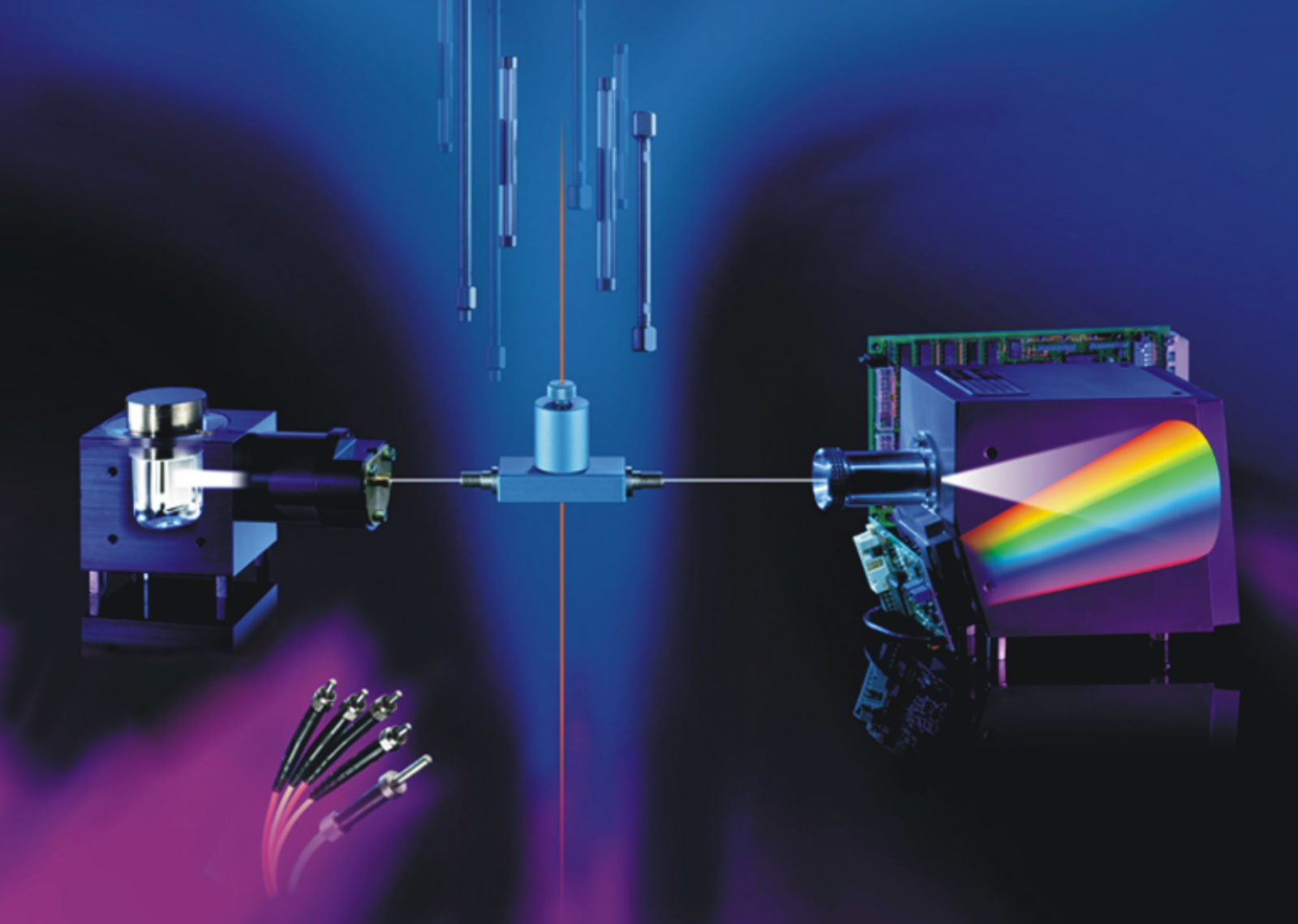

Operating principle of a diode array spectrometer

WinDiss ARGUS Software
WinDiss ARGUS is a revolutionary scientific dissolution data management software tool for instrument control and advanced data acquisition, management, processing and reporting - designed by users for users. Whether you perform dissolution tests occasionally or several times each day WinDiss ARGUS will make you more productive in running tests and analyzing results.

WinDiss ARGUS simplifies how you collect and report dissolution test results by letting you choose the analysis template that matches the way you work. Whether you are in a QC department concerned about data security, compliance and validation, or need maximum ?exibility in the R&D area, WinDiss ARGUS can help your lab to perform more efficiently. Intuitive wizards help anyone in your lab work better - your next dissolution test is running in just a few clicks.
