Mechanical Tablet Set for Daily Verification of Tablet Hardness Testers
Quickly check the hardness measuring station of your Pharma Test PTB tablet hardness testers (or other vendor's units) for correct operation at the beginning of each shift or day. Sometimes referred to as a "mechanical tablet", our PT-MET set functions as a checking device which is used to simulate the breaking of a tablet at defined conditions.

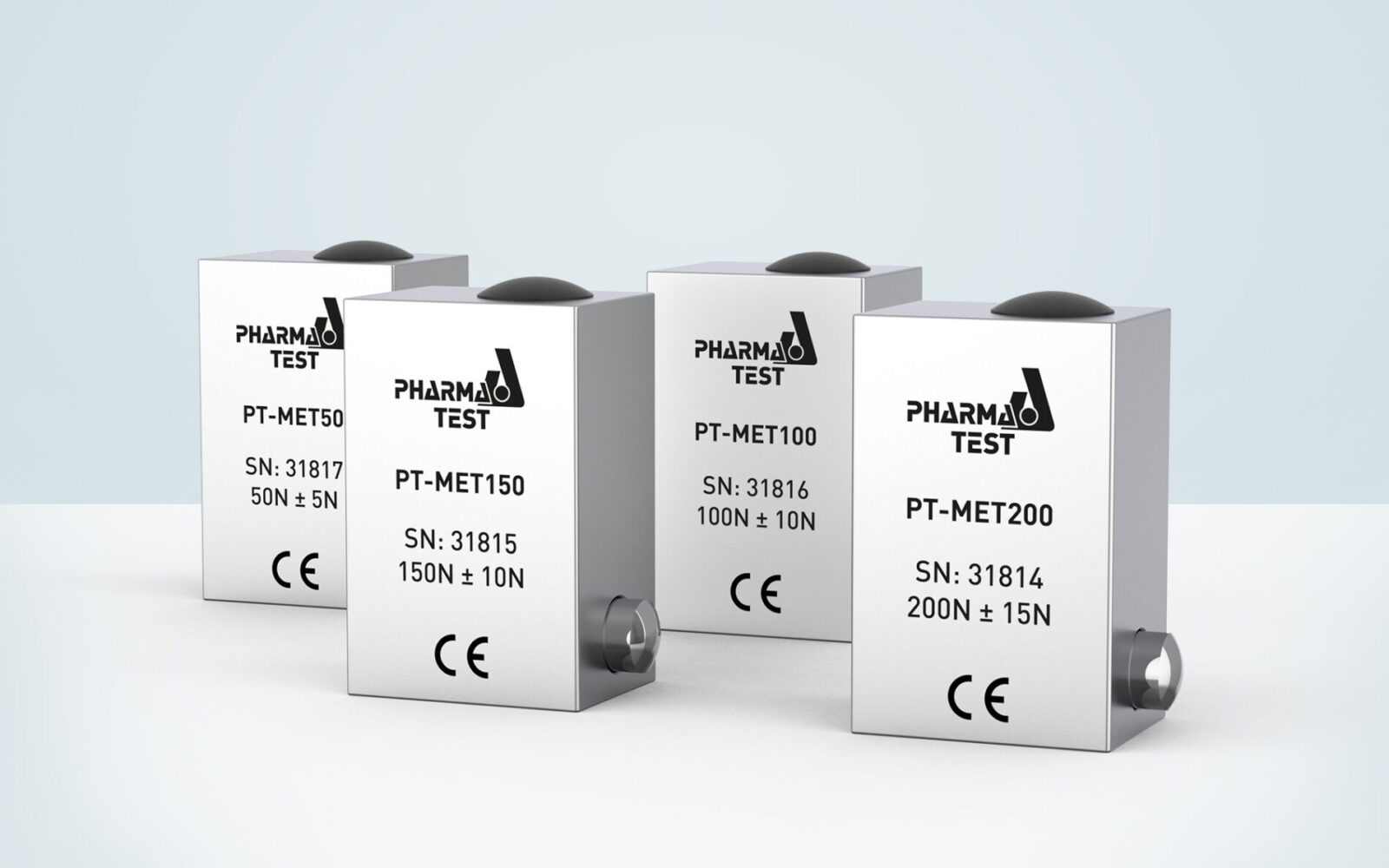

PT-MET mechanical tablet set with four different nominal hardness value: 50, 100, 150 and 200 N
Not replacing periodic calibration, the PT-MET set performs as a daily verification, much like a balance is checked at the start of each day and can be recorded in the instrument's logbook. The PT-MET mechanical tablets come as a set of four or can be purchased individually. They come with a certificate of calibration, operating instructions and can be returned to us for re-calibration.

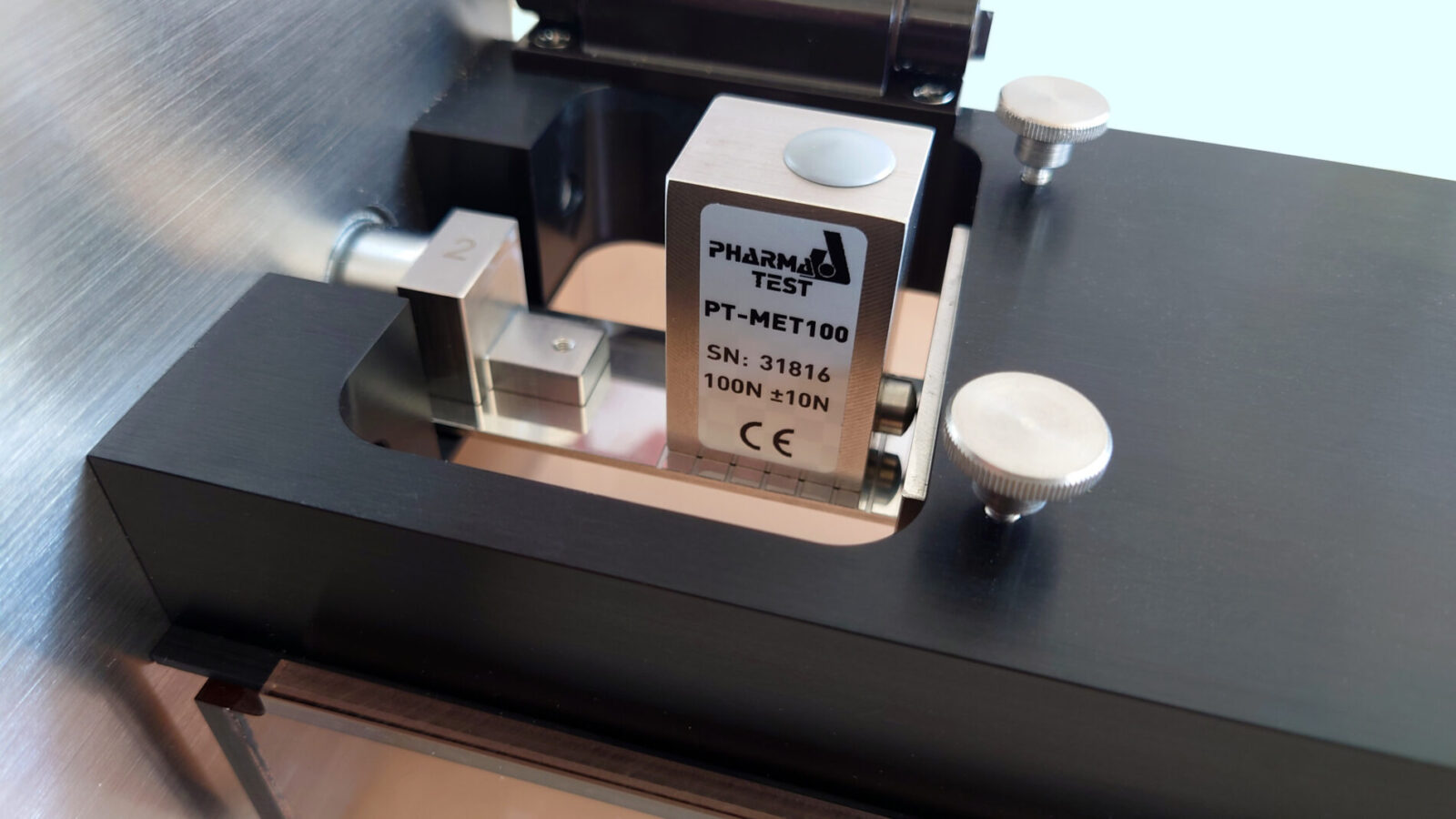

Checking a PTB 311E Hardness Tester with a PT-MET mechanical tablet with 100 N ("PT-MET100")
| Part No. | Description | Accuracy |
| 28-01000 | PT-MET Mechanical Tablet Set - 50, 100, 150 and 200N | - |
| 28-01050 | PT-MET50 Mechanical Tablet - 50N | ± 5N |
| 28-01100 | PT-MET100 Mechanical Tablet - 100N | ± 10N |
| 28-01150 | PT-MET150 Mechanical Tablet - 150N | ± 10N |
| 28-01200 | PT-MET200 Mechanical Tablet - 200N | ± 10N |
A set will come in a single case, individual units come in an individual case. Each unit is serialized. They are made in Germany.
| Parameter | Specification | |||
| Nominal hardness value | 50N | 100N | 150N | 200N |
| Hardness accuracy | ± 5N | ± 10N | ± 10N | ± 10N |
| Unit dimensions | Approx. 33.1 x 22.0 x 45.0 mm (width x depth x height) | |||
| Unit weight | Approx. 220gr | |||
| Packaging dimensions (set) | Approx. 16.2 x 11.3 x 5cm (width x depth x height) | |||
| Net weight (set) | Approx. 1.0kg | |||
Features are subject to chance due to ongoing development. We reserve the right to make technical changes without any prior notice.
